Mobigater Pro/SIP 2-in-1 Skype/SIP GSM personal gateway (MOBIGATER PRO)

Mobigater Pro/SIP 2-in-1 Skype/SIP GSM personal gateway (MOBIGATER PRO)

MobiGater Pro is a GSM Gateway for Skype and SIP.

You can make long distance VoIP calls from any mobile, at the price of a local GSM call.

MobiGater PRO for Skype™

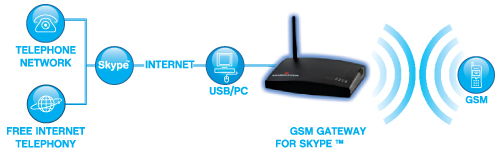

MobiGater Pro model supports a single SIM card and it forwards Skype calls to different mobiles (up to 5). MobiGater enables you to organize a company Skype central. It lets your customers or partners get in touch with different departments and employees via IVR (Interactive Voice Response)

Main Features:

● Incoming Skype™ calls to different mobile phones (Skype PBX function)
● Outgoing Skype™ calls from different mobile phone numbers
● Incoming SkypeIn calls to different mobile phones (Skype PBX function)
● Outgoing SkypeOut calls from different mobile phone numbers
● MobiGater configuration via web
● MobileSkype - Symbian S60 Software for mobile phones


How To Get Started?

Using a second SIM card, MobiGater creates a gateway between your computer and your mobile phone. All you need to do is:

● Install the software on your computer;

● Connect the MobiGater to your computer; Set up speed dials on your Skype contacts; Run the MobiGater software;

● Now you can start making Skype/SkypeOut and receiving Skype/SkypeIn calls on your mobile;

MobiGater PRO for SIP

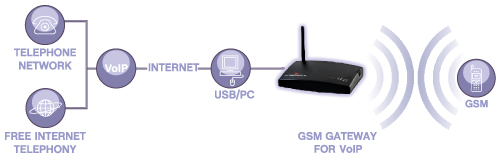

MobiGater PRO is a SIP to GSM Gateway, which allows you to make & receive SIP calls anywhere from and to any type of mobile phone. It connects to your cell phone via a SIM card placed inside , and by using a USB cable to your PC and SIP-based VoIP accounts. The mobile phone numbers that can access your MobiGater SIP are unlimited. At the same time the model forwards the SIP calls to one mobile phone

● Incoming VoIP calls to a mobile phone

● Outgoing VoIP calls from Multiple mobile phone numbers

● Asterisk compatible via USB (work as Asterisk extension)

MobiGater SIP Software Functions:

● Status Indication (Registered/Unregistered/Talk)

● Call Timer; Unlimited Speed Dials; Redial; Call Transfer;

● Call Forward (to GSM); Incoming Caller ID;

● Unlimited Phone Book Entries; Call Log- Missed, Received,

● Outgoing; Multi-language Support; Networking: SIP, RTP, RTCP, DTMF

● Voice: Voice Activity Detection, Acoustic Echo Cancellation

● Codecs: G.711 uLaw, G.711 ALaw, G.729a, G.723, GSM




System requirements:

CPU:          800MHz or faster
RAM:        256MB or more
OS:             Microsoft Windows XP or
                   Microsoft Windows 2003 (32bit)
Software:   Microsoft.NET Framework 2.0
Skype:       Skype™ version 3.x.x.x or later

Connectors:

USB cable between PC and MobiGater (High-power USB port required; USB 2.0 recommended)

Technical Specifications:

• GSM Network Type: GSM Phase 2/2+
• GSM Module: 900/1800/1900Mhz Compatibility
• SIM Card: plug-in; 3V or 5V
• Dialing format: DTMF
• Temperature Range: 0-45C, 32-113F
• Consumption: Stand-By: 350mW; In Call: 1-2W
• Maximum Relative Humidity: 95%
• Dimensions: (W x D x H): 190 x 135 x 40mm

Connectors:

• USB cable between PC and MobiGater
• USB Host Ports x2
• PWR Supply: DC PWR jack
• Antenna: SMA Female
• 3.5mm Stereo Jack x2 (Line Out, Microphone)
• Line: RJ-11, RA (Optional)
